Caravan BBQ Hose

Caravan/RV External gas access point for BBQ and other LPG appliances

Features:

  • External gas access point for BBQ, heater and Gas appliances
  • Safe – the fitting locks in place upon turning
  • Robust and durable – the product is made of high quality materials
  • Easily installed using a core drill
  • Well styled compact design
  • Cover locks open and closed
  • Two hose exit angles
  • Plastic parts made of high quality materials with long-term UV resistance
  • Corrosion-resistant materials suitable for LP Gas
  • Total sealing between device and wall of prefabricated structure
  • Total sealing between cap and the connection device

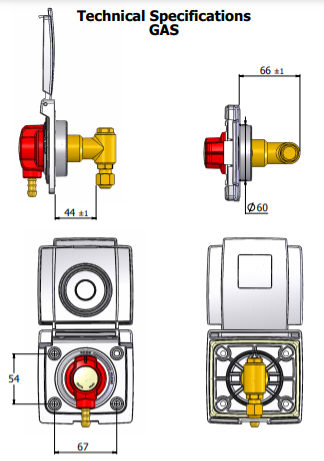

Technical Specifications

CARAVANtech
CARAVAN4
Specifications:

  • Max working pressure: Up to 7 Bar

Materials:

  • Body: Hot forged brass alloy CW614
  • Additional brass parts: Brass alloy CW614
  • Plastic unit: Polycarbonate
  • Lever handle: ABS (Acrylonitrile Butadiene Styrene) UV resistant
  • Hinges, springs and screws: stainless steel
  • Gas valve: rubber NBR gaskets conforming to EN549 standard
  • Wall gaskets and cap gasket: UV and ozone resistant EPDM (Ethylene Propylene Diene Monomer – Synthetic rubber)
  • Ball valve seals: PTFE
  • Rubber gaskets: EPDM approved for drinking water according to WRAS

Installation Instructions:

  • Cut a 60mm hole with a core drill and affix with self-drilling screws
  • Connect pipes with standard fittings

Options:

  • Colors: White, Cream

Standards:

  • Meets the requirements of EN 331 Standard
  • US Patent: 4,662,396
