Click Control – Motorized Zone Valve

Electrically operated valves, for use in fan coil units, heating equipment, controlled air-conditioning and heating systems



Click Control – On/Off Motorized Valve



  • Used in fan coil units and other HVAC systems
  • On/Off type, 2-way normally-closed and diverting
  • Uses fully enclosed one way hysteresis synchronous motor with spring return
  • The valve actuator can be easily mounted on a pre-installed valve body in a fan coil unit, a radiator or a compressed air unit
  • No need for calibrations or special fittings to connect the actuator to the valve body

Advantages:

  • Speedy open/close operation
  • Easy installation
  • Reliable
  • Heavy duty

Applications:

  • Temperature control in heating/cooling systems
  • Liquids release in high pressure systems
  • Flow control in agricultural and industrial water systems
  • Fuel systems to control burners
  • Gas flow regulation
  • Steam systems (low temperature), laundries, kitchens etc.

Characteristics:

  • Speedy 3 Sec. open/close switching time
  • Waterproof
  • 90° revolution between open and closed positions
  • Single switch operation

Working Temperatures:

  • Working temp. – 100°C
  • Short term temp. – 140°C

Configuration:

  • Valve Sizes: ½”, ¾”, 1″
  • Power Inlet: 24V AC @50/60Hz, 110/120V AC @50/60hZ, 230V AC @50/60Hz – Preset in the factory
  • Switching Type: Normally Open (N.O.) / Normally Closed (N.C.)
  • Optional indication LED indicating fully open valve position
  • Optional auxiliary output to indicate fully opened valve position

Flow Coefficients & Maximum Close-Off Pressure

Valve Size Connection Type* 2-way Cv (Kv) 3-way Cv (Kv) Close-Off PSI (kPa)
1/2” NPT, BSPT, IFL 3.5(3.0) 4.0(3.4) 30(208)
5/8” NPT, BSPT, IFL 3.5(3.0) 4.0(3.4) 30(208)
3/4” NPT, BSPT, IFL 5.0(4.3) 5.0(4.3) 25(172)
1” NPT, BSPT, IFL 7.5(6.5) 7.5(6.5) 20(137)

*Connection type:

  • NPT- National (American) Pipe Thread (Female)
  • BSPT- British Standard Pipe Thread
  • IFL- Inverted Flare

Operating Pressure Limits: 300PSI – PN20 (2,100kPa)
Server: Hot and Chilled Water, up to 50% Glycol
Motor Voltage: 24V AC @50/60Hz, 110/120V AC @50/60hZ, 230V AC @50/60Hz
Power Consumption: 6.5Watts, 7 VA
Stroke Speed: Power Stroke 13 to 18 Seconds, Spring Return Stroke 4 to 5 Seconds
Seat Leakage: Zero Leakage (100%) Bubble-Tight Close-Off
Body Materials: Body – Forged Brass, Stem – Nickel-Plated, Seat – Brass, Paddle – NBR
Actuator Materials: Stainless Steel Base Plate, Aluminum Cover

Ambient Temperature Limits
Shipping & Storage -40° to 160° F -40° to 71° C
Operating Fluid 32° to 200° F 0° to 93° C
Operating Ambient 32° to 104° F 0° to 40° C

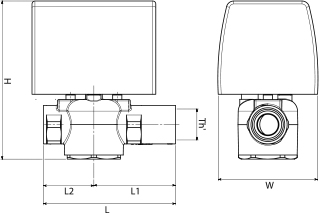

2-Way Click Control

CAT. NO. Size H mm L mm L1 mm L2 mm W mm Qty/Box
18FC080T2 1/2″ 106.8 89.0 55.0 34.0 67.0 10
18FCF0002 5/8″ 106.8 89.0 55.0 34.0 67.0 10
18FC120T2 3/4″ 104.0 87.0 43.5 43.5 67.0 10
18FM160T2 1″ 127.0 105.0 48.0 48.0 67.0 10
18EN00000 Motor only 10

3-Way Click Control

CAT. NO. Size H mm L mm L1 mm L2 mm W mm Qty/Box
18FC080T3 1/2″ 106.8 89.0 55.0 34.0 67.0 10
18FCF0003 5/8″ 106.8 89.0 55.0 34.0 67.0 10
18FC120T3 3/4″ 104.0 87.0 43.5 43.5 67.0 10
18FM160T3 1″ 136.0 95.0 48.0 48.0 67.0 10
18EN00000 Motor only 10
