Angle Seat Valve
Angle Seat Valves – Lead free brass
Features:
- Angle Seat Valves – Made from lead free brass
- The mechanism is based on Gas valves mechanism – For high reliability
- Closing and opening produces a continuous, non-spiral mechanism – Prevents abrasion
- Robust mechanism with wide seals – Prevents leaks
- A unique mechanism that is not based on tightening nut technique – For smooth operation of the valve
- Plastic cover for the mechanism – To prevent dirt from penetrating the valve
- A mechanical seal is formed when opened all the way>
- Temperature range: -5°C – +100°C
- Work pressure: Up to 16 ATM (235 psi)

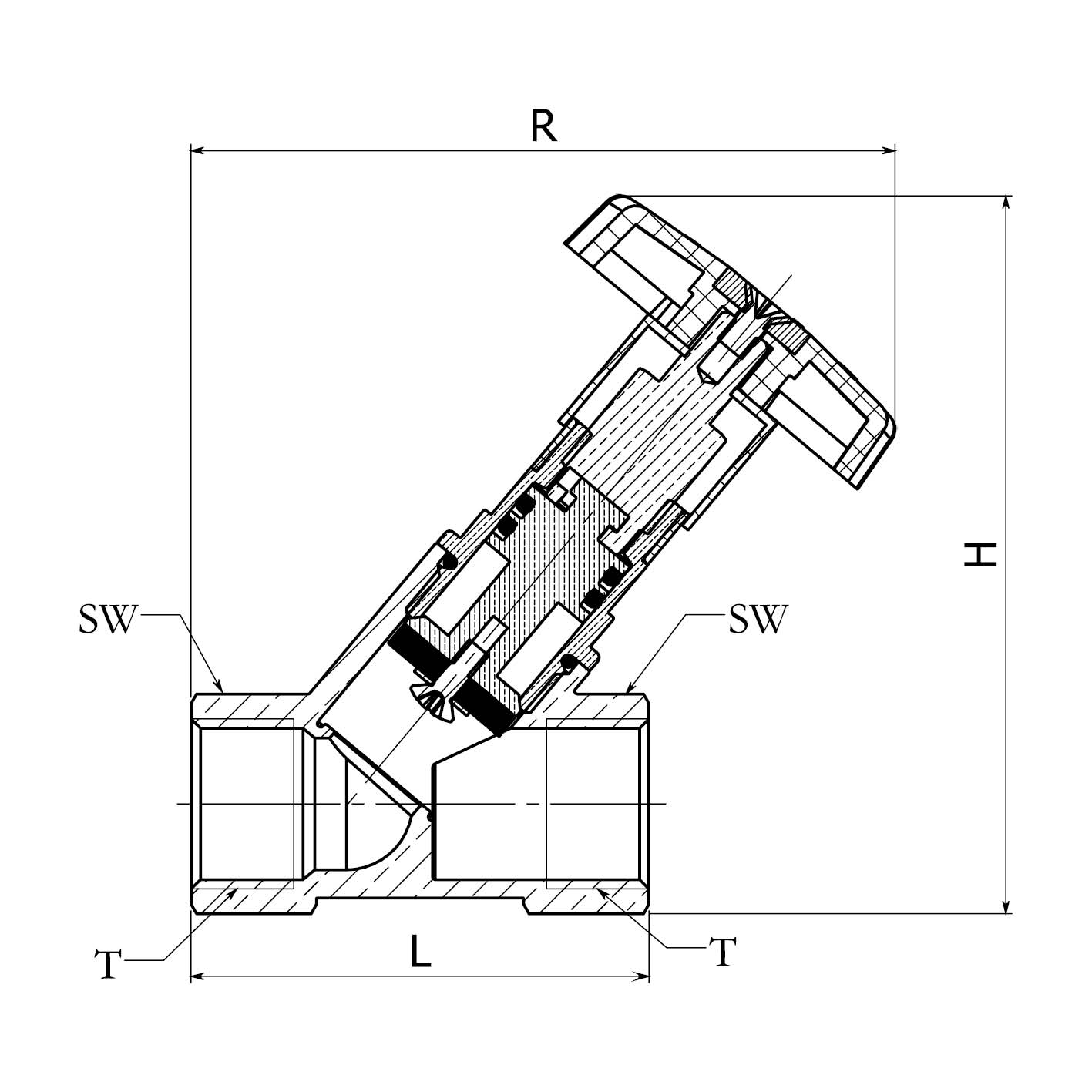

| CAT. NO. BSP | T Thread | L mm | H mm | R mm | SW HEX | Qty/Box |
| 1ALH12000L |
3/4″ | 73.0 | 115.0 | 113.0 | 32.0 | 20 |
| 1ALH16000L | 1″ | 87.5 | 134.0 | 135.0 | 38.0 | 15 |
| 1ALH24000L | 1 1/2″ | 115.0 | 184.0 | 181.0 | 54.0 | 9 |
| 1HLH32000L | 2″ | 136.0 | 224.0 | 214.0 | 66.0 | 5 |
