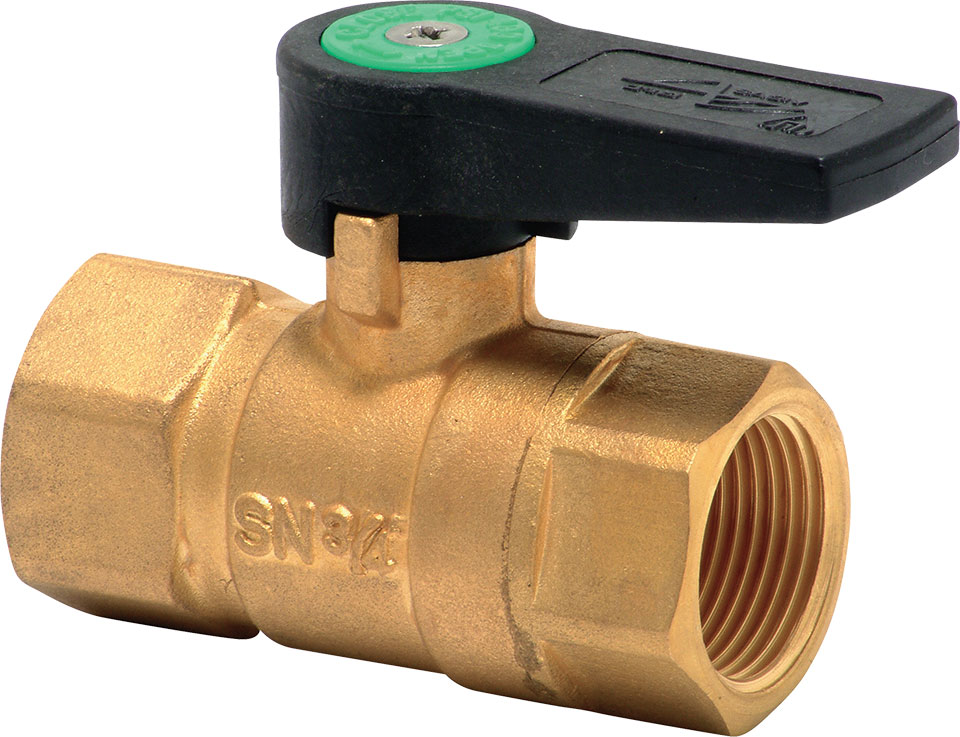

SN 200 Ball Valve

Large bore valve with Female to Female thread



Features:

  • Large bore ball valve with BSP Female to Female thread
  • Temperature range: -5°C – +100°C
  • Work pressure: Up to 28 Bar. Sagiv valves are adapted for vacuum environments
  • P.T.F.E. seals that ensure a long life performance

Options:

  • Long handle
  • NPT thread – Please contact us for details
  • Nickel or Nickel-Chrome plating

SN 200 Ball Valve
Green Line SN 200 Ball Valve – Short Handle

CAT. NO. BSP CAT. NO. NPT T Thread D Dia mm H mm L BSP mm L NPT mm Short Handle mm Long Handle mm SW HEX Qty/Box Short Handle Qty/Box Long Handle
1N1002000 1N1002100 1/8″ 5.0 26.9 36.0 36.0 36.5 66.5 21.0 50
1N1004000 1N1004100 1/4″ 8.0 26.9 41.5 46.5 36.5 66.5 21.0 50
1N1006000 1N1006100 3/8″ 8.0 26.9 49.0 49.0 36.5 66.5 21.0 50
1N2008000
1N2008100 1/2″ 13.0 48.0 62.5 60.0 51.0 96.0 25.0 50 40
1N2012000 1N2012100 3/4″ 17.0 52.0 72.5 69.0 51.0 96.0 32.0 40 30
1N2016000 1N2016100 1″ 21.0 55.0 84.0 83.0 51.0 96.0 38.0 25 20
1N2L20000 1N2L20100 1 1/4″ 28.0 83.0 94.0 96.0 96.0 48.0 10
1N2L24000 1N2L24100 1 1/2″ 32.0 83.0 107.0 99.0 147.0 56.0 6
1N2L32000 1N2L32100 2″ 40.0 86.0 122.0 121.0 147.0 66.0 4
1N2016002 1″ x 3/4″ 21.0 55.0 84.0 51.0 96.0 38.0 30 25
