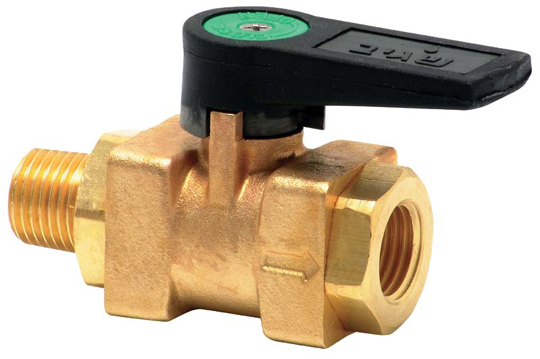

Vented Ball Valve

Male to Female Vented Ball valve with Air/Liquid release aperture



Features:

  • BSP Male to Female Vented ball valve with Air/Liquid release aperture
  • Work pressure: Up to 25 Bar. Sagiv valves are adapted for vacuum environments
  • P.T.F.E. seals that ensure a long life performance

Options:

  • NPT thread – Please contact us for details

Utilization:

  • At the inlet of pressure meters, the meter is readable when the valve is open and when the valve is closed the air or liquid is released and the meter remains without pressure

SMA Ball Valve drawing

CAT. NO. BSP CAT. NO. NPT T Thread D Dia mm H mm L mm R mm SW HEX Qty/Box
1MAH02000 1MAH02100 1/8″ 4.0 27.3 55.6 36.5 20 50
1MAH04000 1MAH04100 1/4″ 6.0 27.3 66.2 36.5 20 50
1MAH06000 1MAH06100 3/8″ 6.0 27.3 61.2 36.5 20 50
1MAH08000 1MAH08100 1/2″ 6.0 27.3 59.2 36.5 20 50
